Fanso Battery Lithium Primary ER18505H 3.6V Lisocl2 Bobbin Type Batteries Lithium Thionyl Chloride Battery

FOB Reference Price:Get Latest Price
$1.56 - $2.22 / Pieces | 200 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Fanso
Model Number:
ER18505H
Nominal Capacity:
4100mAh
Nominal Voltage:
3.6V
Battery Type:
LiSOCl2
Size:
A
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton packaging
Port
Shenzhen/HK
Lead Time :
7-30days
Product Description

ER18505H

Model No:ER18505H
IEC Size: A
Voltage(V):3.6V
Weight(g):30g
Current(mAh\mA): 4100mAh
Max constant current(mA):70mA
Operate Temp.(℃):-55
End voltage(V):2.0V

Features
1, High and stable operating voltage;
2, Long shelf life(Self-discharge rate less than 1% at 25℃);
3, Long operating life;
4, Wide temperature range;
5, Stainless steel container and end caps;
6, Hermetic glass-to-metal sealing;
7, Non-flammable electrolyte;
8, Compliant with IEC86-4 safety standard;
9, Non-restricted for transport;
10, High energy density(700kw/kg).

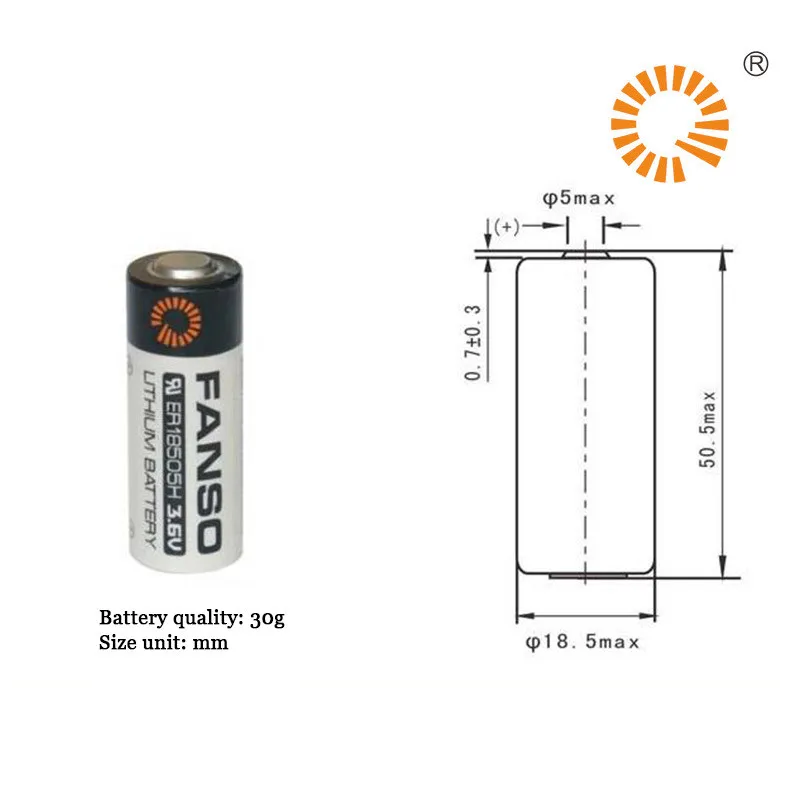

Specification
1, Size:A;
2, Dimension: Φ18.5mm*50.5mm;
3, Weight: 30g;
4, Capacity: 4100mAh;
(at 2mA,+25℃,2.0V cut off)
5, Open circuit voltage: 3.6V
6, Max continuous current: 70mA
(at 25℃ 2.0V cut off, up to 50% of nominal capacity)
7, Max pulse current: 150mA;
(100mA/0.1s pulse, drained every 2 minutes at 25℃ from 2mA mid-charged cells with 20μA base current, yield voltage readings above 2.7V, the readings may vary according to the pulse characteristics, the temperature, and the cells’s previous history.)
8, Operating temperature: -55℃ ~ +85℃;

Applicantion
1, Utility metering;
2, Alarm and security devices;
3, Memory back-up power;
4, Professional electronics;
5, Automotive electronics;
6, Real-time clock;
7, Tracking system.

Storange condition: clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Warning: Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.

About Fanso

Founded in 2002 by Mr. Dai Jianghua, an initiator of primary lithium battery in China, Fanso Battery is a most qualified manufacturer of primary lithium batteries in China, owing to experienced specialists and technicians in this field for over 30 years. Accumulated storage and application data guides our constantly innovation of technologies and equipment, and guarantees long operating life.

Our main products are 3.6V Li-SOCl2 batteries and 3.0V Li-MnO2 batteries. Equipped with 16 advanced production lines, we have the capability of 80 million pcs annually.

Our batteries are mainly applied to commercial market——LWD&MWD for oil exploration, electronic pressure gauge, flow meter, TPMS, smart meters, RFID, RAM and CMOS circuit, geothermal heat detector,and military field——aerospace, underwater ordnance, sonar, GPS and various force stations.

Fanso is ISO9001 certified and our batteries are approved by UL, CE, RoHs, UN and many other international standards. Fanso is awarded as Hi-Tech Company by Hubei Province.

Fanso sticks to continuously refining and innovating, satisfying our customers by utmost service. Choose Fanso, choose what you need.

Technology

Exclusive patents: horizontal groove at the bottom of the battery ,
lead direct releasing to avoid irregular operation and cause a vicious accident

Product customization

Fanso li-socl2 battery and li-mno2 battery adapt many different process methods as below picture show:
for each methods we can toggle the anode and cathode by different terminal tabs,
also some other methods with wires and terminal contacts.
our welding technology and materials are the best in this industry to make tight connection.
